Graphic configurator for Syntesi units

New Graphic configurator for Syntesi units

The Syntesi family has a new graphic configurator, which allows - in a very intuitive way - the identification of products, following the existing coding rules.

We have therefore eliminated all the traditional configurators on the platform.

As for EB 80, the user starts from the graphic environment for the construction of the needed product:

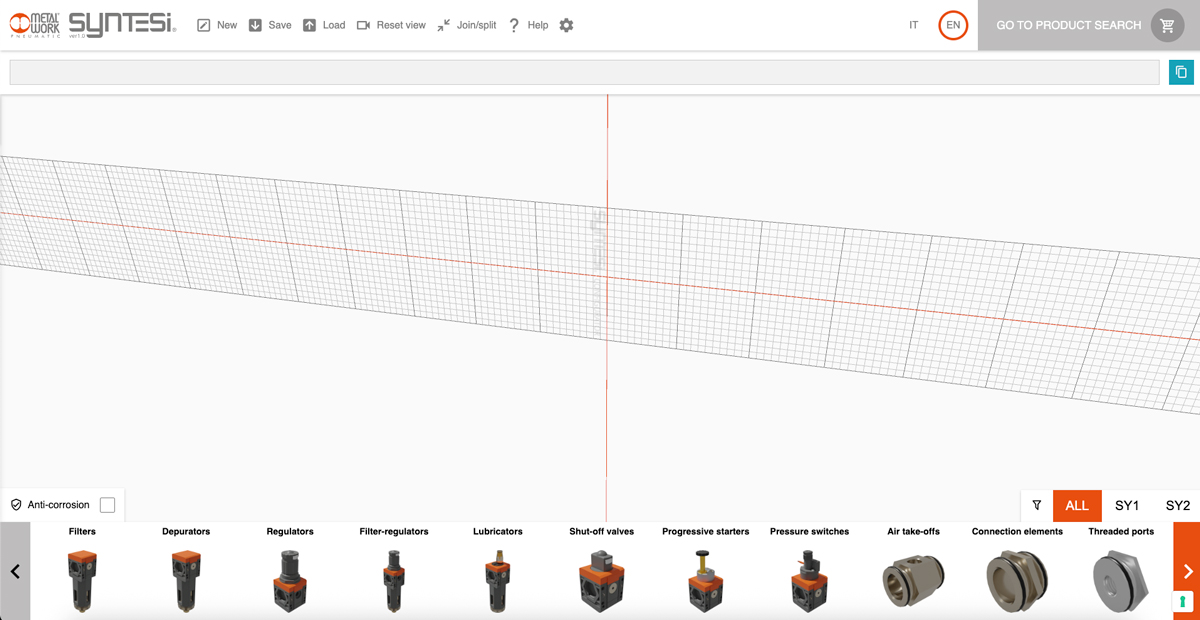

Syntesi configurator home screen


The different elements are inserted and configured in sequence:

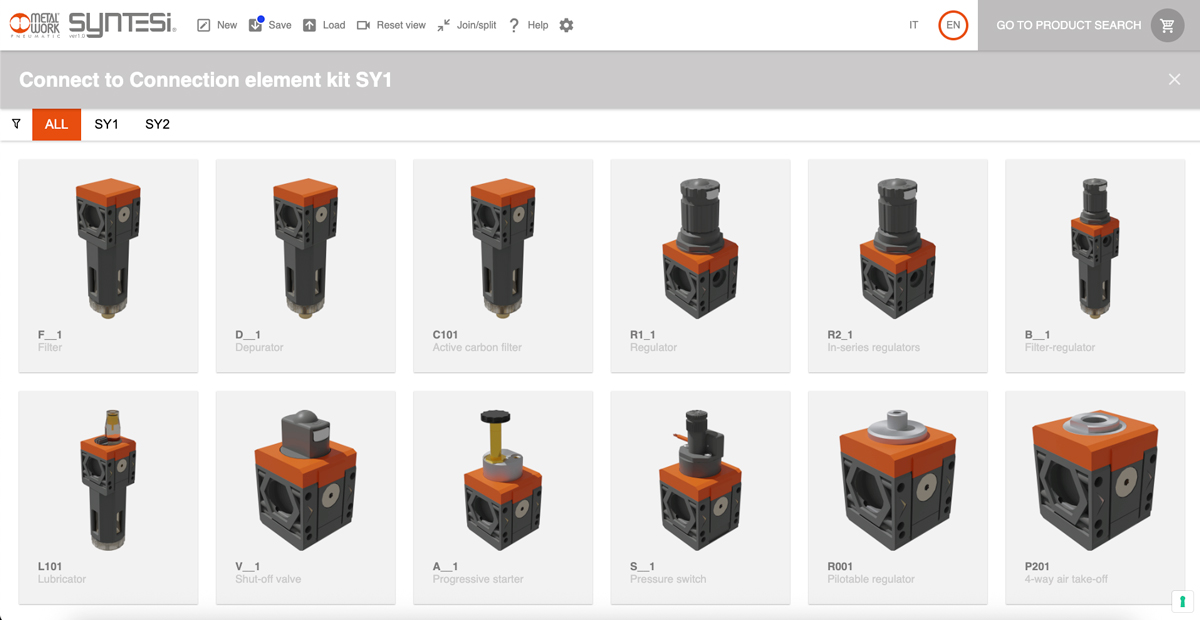

Syntesi configurator product menu


At each step there are specific and intuitive tools which guide the selection and configuration of the elements:

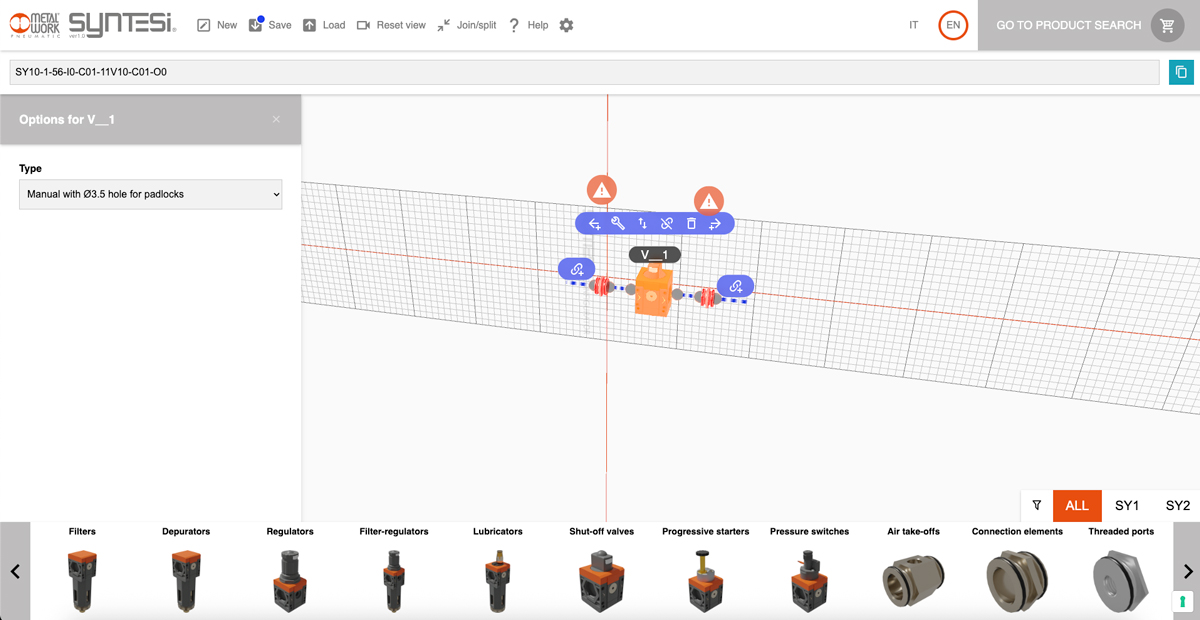

Syntesi configurator product options


For example, it is possible to edit or modify each element, as well as it is possible to modify the inlet and / or outlet bushings.

To switch from size 2 to size 1, the size adapter gets suggested (the reverse option is not allowed). Moreover, it is possible to add new elements by clicking on the proper icon.

What you have configured can be edited, saved and reloaded later:

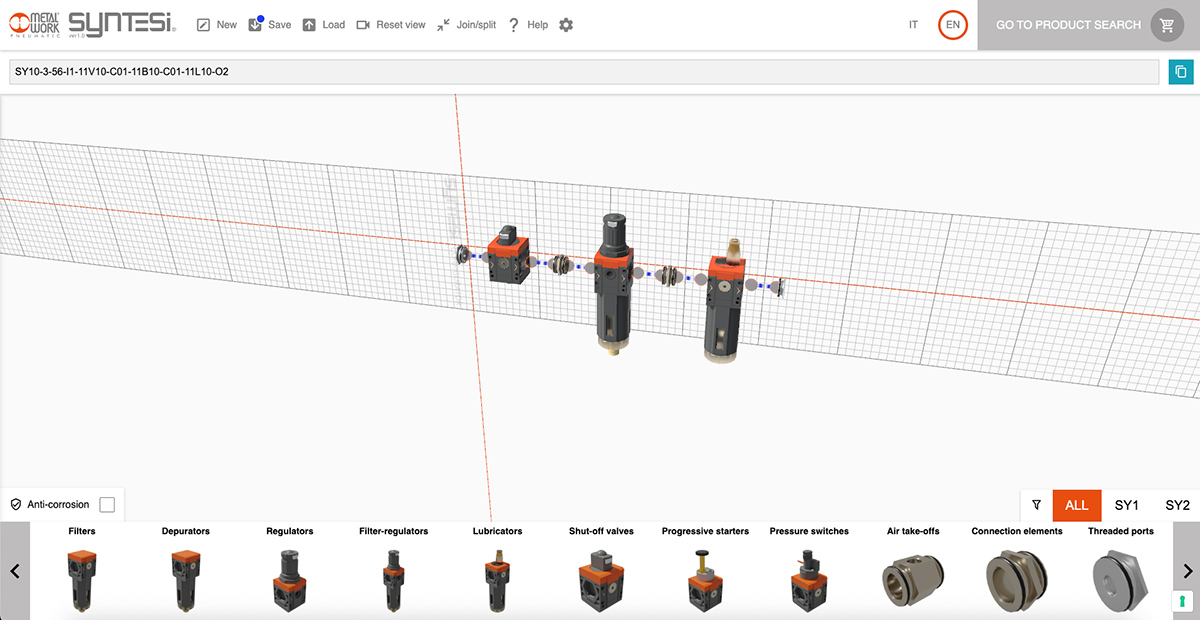

Product configuration with Syntesi configurator


Once the configuration gets confirmed, you will enter directly the summary page of the identified product. As always, it is therefore possible to view all the technical and commercial data, including, for example, the databases of drawings and 3D models:

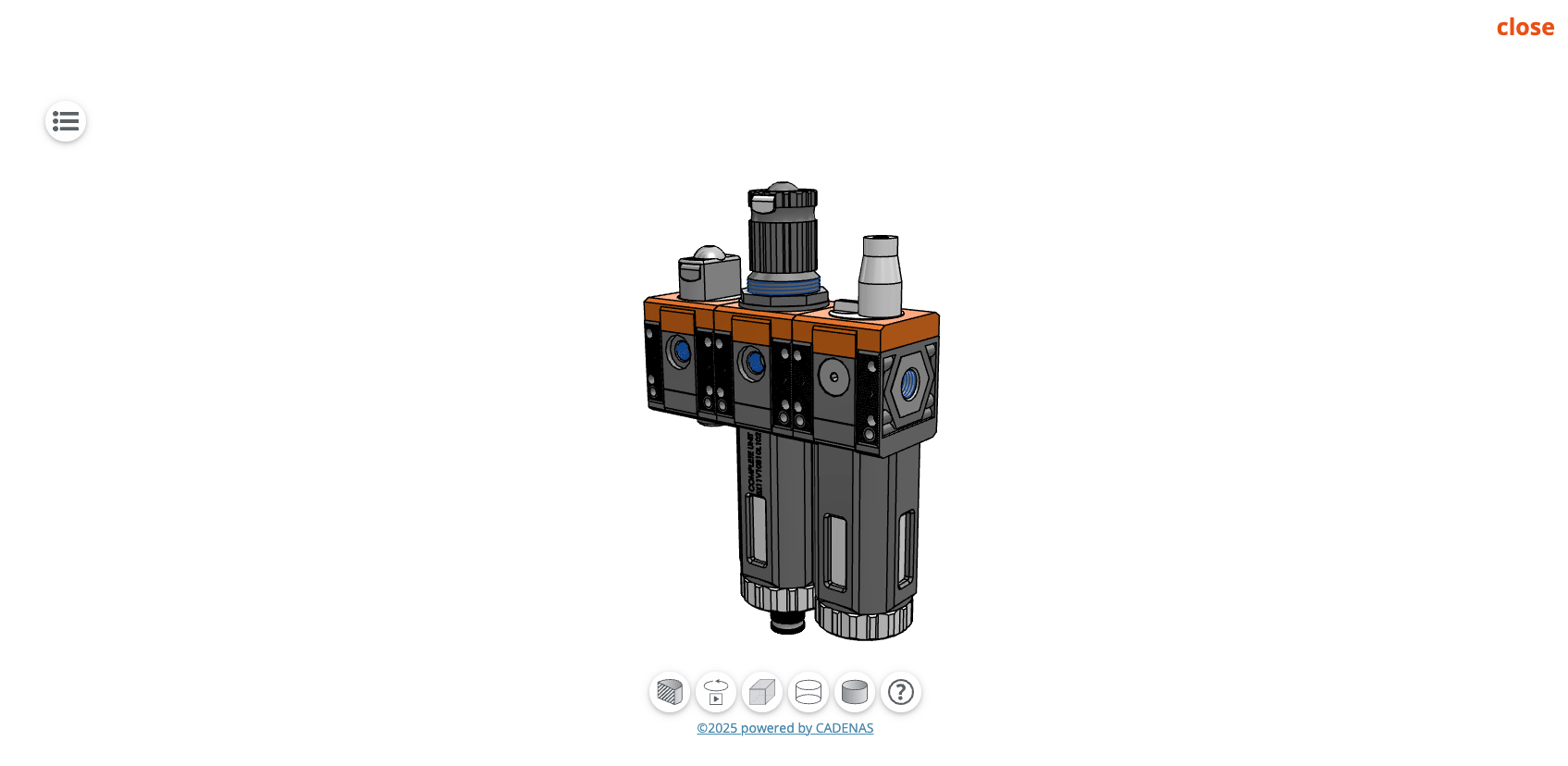

3d product configured with Syntesi configurator


To make your first approach easier, there are also some video tutorials available dedicated to the main functions.


Syntesi configurator menu with highlighted
